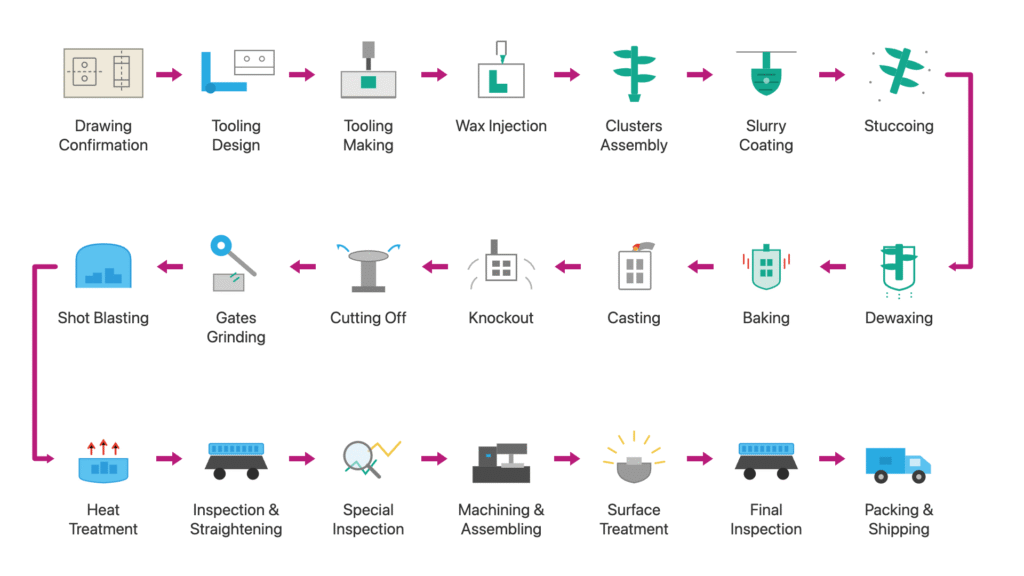

Process
At Rameshwar Alloy Cast, we utilize advanced investment casting technology, modern manufacturing facilities, and stringent quality control systems to deliver precision-engineered castings that meet the highest industry standards.
1. Tooling & Pattern Development
At Rameshwar Alloy Cast, patterns, dies, and tooling are designed and manufactured using state-of-the-art CAD/CAM systems, ensuring exceptional accuracy and repeatability. Our experienced engineering team collaborates closely with customers to optimize component designs for enhanced performance, manufacturability, and cost efficiency.
2. Wax Pattern Production
Using precision wax injection techniques, Rameshwar Alloycast produces high-quality wax patterns that accurately replicate the final component geometry. Every wax pattern undergoes 100% dimensional inspection to ensure compliance with design specifications before advancing to the next stage.
3. Ceramic Shell Building
The wax patterns are assembled into trees or clusters and coated with multiple layers of premium ceramic material. This process is carried out in temperature- and humidity-controlled environments at Rameshwar Alloycast, ensuring superior dimensional accuracy, structural integrity, and excellent surface finish.
4. Dewaxing
Once the ceramic shell has been built, the wax is removed through a controlled dewaxing process, leaving behind a precise hollow ceramic mold ready for casting.
5. Shell Firing & Metal Pouring
The ceramic molds are fired at temperatures ranging from 900°C to 1150°C, depending on the size and complexity of the casting. Rameshwar Alloy Cast then pours molten metal into the preheated molds under carefully controlled conditions to achieve high-quality, defect-free castings.
6. Fettling & Finishing
Following solidification and shell removal, castings undergo a series of finishing operations, including:
- Gate Cutting
- Gate Machining and Grinding
- Sand Blasting
- Shot Blasting
- Leaching
- Deburring
7. Heat Treatment
To achieve the desired mechanical properties and material performance, Rameshwar Alloy Cast performs heat treatment according to customer and material specifications. All heat treatment cycles are carefully monitored and documented to ensure consistent quality and process control.
8. Quality Assurance
Quality is integrated into every stage of manufacturing at Rameshwar Alloy Cast. Our comprehensive quality control procedures include:
- 100% Visual Inspection of all castings
- Inspection of critical dimensions as per customer requirements
- Process monitoring and documentation
- Final quality verification before packing and shipment
9. Machining & Surface Finishing
In addition to supplying castings in the as-cast condition, Rameshwar Alloy Cast offers complete machining services and a variety of surface finishing options, including:
- Passivation
- Electropolishing
- Blackening
- Powder Coating
- Shot Blasting
- Glass Bead Blasting
